Proudi 300L solar water heater full system

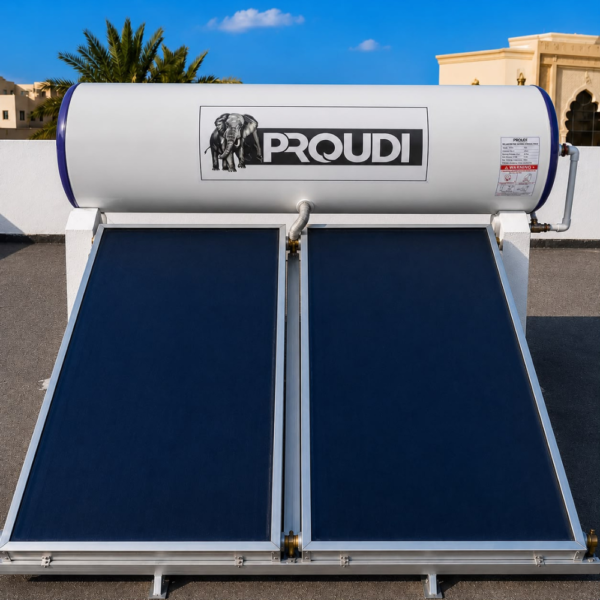

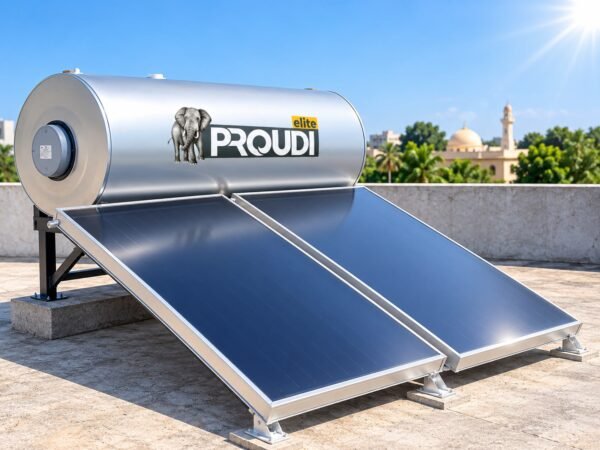

Proudi 300L Solar Water Heater Full System

The Proudi 300L Solar Water Heater Full System is a high-capacity thermosiphon solar water heating solution designed to provide reliable hot water for homes, villas, and commercial applications. The system combines a 300-liter storage tank with a high-efficiency solar collector and electric backup heating.

Key Product Features

• Model: Solar 300L
• Tank Capacity: 300 Liters
• System Type: Thermosiphon Solar Water Heater
• Solar Collector: 1 Panel
• Collector Area: 2.0 m²
• Collector Design: Plate & Tube
• Collector Material: Aluminum with highly selective vacuum coating
• Absorption Coefficient: 95% ± 1%
• Emission Coefficient: 5%
• Collector Flow Range: 30–60 L/m²/hour
• Collector Casing: Aluminum
• Collector Glass: 4 mm Tempered Glass

300L Storage Tank

• Tank Material: Steel with protective layer
• Tank Insulation: High-density fiberglass wool
• Tank Dimensions: 1890 mm Height × 575 mm Diameter
• Maximum Operating Pressure: 10 Bar
• Tank Outlet Temperature: Up to 65°C
• Inlet/Outlet Connection: 3/4″ BSP
• Drain Connection: 3/4″ BSP

Electric Backup Heating

• Heating Element: 3 kW Electric Heater
• Power Supply: 220–240V, Single Phase
• Temperature Control: Double Safety Thermostat
• Provides additional heating when solar energy is insufficient.

Safety Features

• Temperature and pressure relief valve
• Double safety thermostat
• Maximum operating pressure of 10 bar
• 4 mm tempered collector glass for added durability
• Protective layer on the steel storage tank

Main Benefits

• 300L large-capacity storage suitable for higher hot-water demand
• Efficient solar heating with a highly selective vacuum-coated collector
• Thermosiphon design for efficient natural circulation
• Strong steel storage tank construction
• High-density fiberglass insulation helps reduce heat loss
• 3 kW electric backup heater for additional hot-water requirements
• Durable aluminum collector casing
• Tempered glass provides protection for the solar collector
• Suitable for homes, villas, apartments, and commercial applications
• Solar kit and required fittings are included

Delivery & Warranty

• Free Delivery Across the UAE
• Delivery Within 24 Hours
• Supply Only – Installation Charges Additional
• 5-Year Warranty
• 1-Year Free Maintenance
