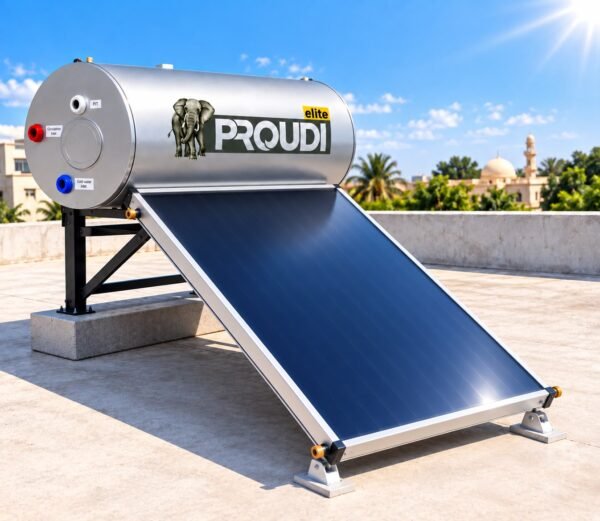

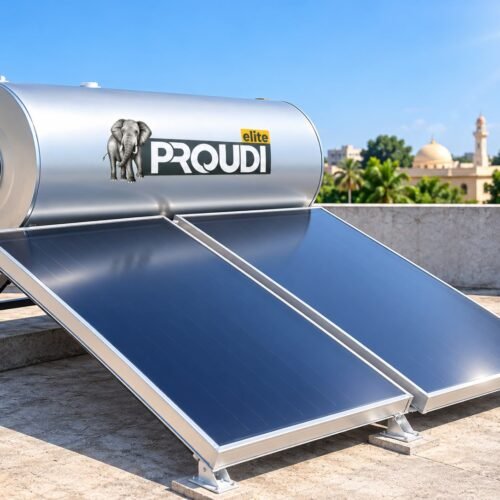

PROUDI ELITE 200L Solar Water Heater system

The PROUDI ELITE 200L Solar Water Heater is designed to provide efficient hot water heating using solar energy, with an electric backup heater for additional heating support when required. The system combines a flat-plate solar collector, insulated cylindrical storage tank and jacket-type heat exchange technology for rooftop solar water heating applications.

Key Features

• 200L nominal capacity and 195L net capacity
• Flat-plate solar collector system
• Jacket-type heat exchange technology
• Heat exchange efficiency of ≥85%
• 2000W electric backup heater
• AC 220V / 50Hz electrical supply
• IPX4 electrical protection
• Integrated temperature sensor and magnesium protection system
• G3/4″ male water inlet and outlet connections
• G3/4″ male circulation connections
• Suitable for rooftop solar water heating installations

Storage Tank Construction

Inner tank: Stores the domestic hot water and incorporates the water connections, electric heating element, temperature sensor and magnesium protection bar.

Heat-exchange jacket: Surrounds the inner tank and forms the solar heat-transfer circuit. Heated fluid from the solar collector circulates through the jacket to transfer heat to the domestic water.

Outer tank and insulation: The protective cylindrical body houses the insulated tank assembly. The insulation layer helps reduce heat loss and maintain hot-water temperature.

Tank Connections

• Left side, upper: Hot water outlet
• Left side, lower: Circulation outlet
• Right side, upper: P/T valve
• Right side, middle: Circulation inlet
• Right side, lower: Cold water inlet

Technical Specifications

• Nominal capacity: 200L
• Net capacity: 195L
• Outer diameter: Ø520mm
• Overall length: 1595mm
• Jacket length: 1565mm
• Tank length: 1250mm
• Inner tank working length: 1100mm
• Bracket length: 1180mm
• Inner diameter: Ø426mm
• Inner working diameter: Ø300mm
• Heat exchange area: 1.5m²
• Exchange capacity: 10L
• Exchange efficiency: ≥85%
• Jacket working/test pressure: 0.20 / 0.25MPa
• Tank working/test pressure: 0.60 / ≥0.70MPa
• Electric heater: AC 220V / 50Hz / 2000W
• Water inlet and outlet: G3/4″ male
• Circulation connections: G3/4″ male
• Electrical protection: IPX4

Professional installation is recommended to ensure correct connection of the solar circulation circuit, water lines and electrical backup heater.
